NEW! iStatE: programmable TCP/Modbus thermostat
The iStatE is a full-featured intelligent programmable TCP/Modbus thermostat / controller, wall-mount, ready for ControlCore programming, with RS485 network port AND TCP/IP to allow remote programming and monitoring. The iStatE is ideal for all industrial or residential applications requiring smart controllers. It is a drop in replacement for the iStat6 controller, adding to its great features an oversized color TFT screen, Wi-Fi and Bluetooth support, TCP/IP connection, an embedded humidity sensor, MQTT support and many more.
iStatE programmable thermostat

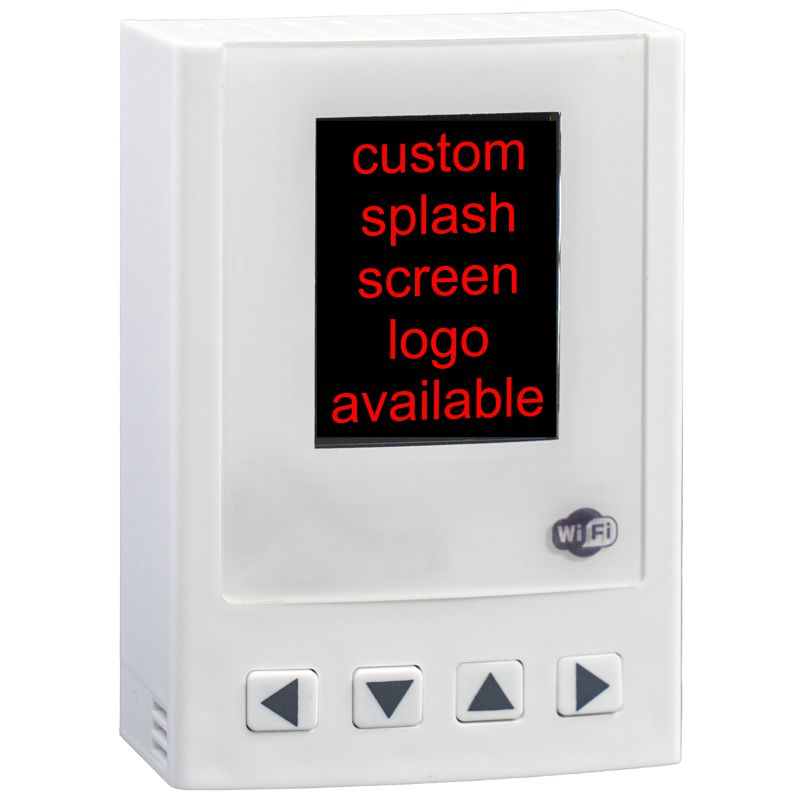

Generic version available, custom splash-screen logo
OEM branded printed faceplates available
CE Declaration of Conformity
FCC Compliance InformationMain Features:
- 8 AUI, jumper selectable (Therm, 0-10V, 4-20ma), dry contact, 12-bit resolution
- AUIs are s/w configurable as Analog / Digital / Counter / Frequency inputs
- 5 relays @ 2A
- 4 AO, jumper selectable (0-10V, 4-20ma) 10-bit resolution
- Real Time Clock
- Embedded humidity sensor
- Photo Cell (measures ambient light)
- Programmable momentary push-button input
- Customizable TFT/IPS color screen
- Supports ControlCore and standard Modbus/RTU protocol
- MQTT Protocol support. Access data from MQTT compatible Brokers
- WiFi connectivity to LAN and Internet
- TCP/ Modbus, all connected device's points can be accessed through the Network Controller's TCP/IP connection, eliminates bottlenecks normally associated with Modbus gateway access to slow RS485 networks
- Default Modbus address: 255
The iStatE can act as a Network Controller and offer the following features:
- Supervisory control, the Network Controller can run a ControlCore algorithm referencing any of the connected RS485 devices parameters, including generic Modbus devices
- Secure call-out internet connections via iSquared Cloud servers, eliminates need for static IPs or open network ports
- Custom WEB sites. Create remote WEB sites for user access to data points and recorded history
- History data storage to iSquared Cloud servers. Expands history storage capacity from hours to years
- Supports peer-to-peer device intercommunication; on-site devices can access remote data from other devices or from the master itself
- TCP/ Modbus, all connected device's points can be accessed through the iStatE TCP/IP connection, eliminates bottlenecks normally associated with Modbus gateway access to slow RS485 networks
- Algorithmic access to weather information. Allows weather conditions information to be included in ControlCore programming logic
Datasheet: iStatE.pdf
User manual: iStatE user manual
Program your iStatE: download the latest ControlCore software versions
Quick ControlCore programming tutorial: ControlCore Tutorial
iStatE device
$259/unit
- ControlCore authorized
- Standard label
iStatE device
$259/unit
- ControlCore authorized
- Generic label
OEM branded printed faceplates
$5/unit
- MOQ = 100 units
Prices above do not include applicable sales taxes.
All prices are in US$.
All prices indicated on our website are subject to change without notice.
